TE
HOT
5-104071-7 TE
| 芯链芯城 #: | XLXC-11808399 | |
| 型号: | 5-104071-7 | |
| 制造商: | TE | |

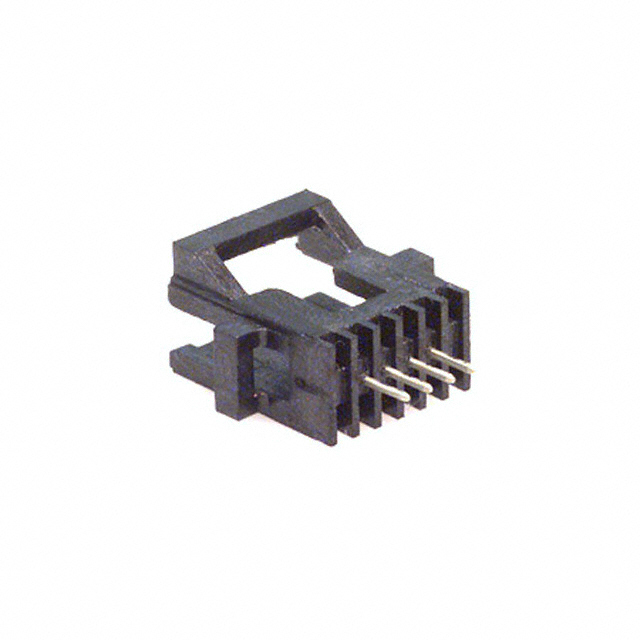

| 描述: | CONN HEADER VERT 4POS 1.27MM | |
| 客户型号: | ||
| 无铅状态: | 无铅 | |
数据表 | 添加到收藏 | 样品申请 |
联系销售
对该产品有疑问？我们的销售团队随时为您提供支持。
如需了解价格、库存、交期或替代型号，欢迎联系我们。我们将在 1 个工作日内回复您。
销售代表
运费及运输方式 - 估算
芯链芯城向全国数百个城市发货，选择指定城市以查看快递费用。
运送到特定城市的订单可以根据订单数量和/或包裹大小和重量获得免费送货资格。
运费可能因订单金额、包裹重量、尺寸和所选运输方式而异。
根据这些因素，部分订单可能符合免运费或运费折扣条件。
选择要运送到的城市:
注意:
运费是按照1公斤的标准包裹重量估算的。
如果实际发货的货物重量或尺寸超过标准限制，我们的销售团队会在发货前与您联系以确认最终费用。
| 类型 | 描述 | 选择属性 |
|---|---|---|
| 类别 | ||
| 制造商 | TE | |
| Series | AMPMODU System 50 | |
| Connector Type | Header | |
| Voltage Rating | 30VAC | |
| Mounting Type | Through Hole | |
| Style | Board to Board or Cable | |
| Operating Temperature | -65°C ~ 105°C | |
| Applications | Automotive, General Purpose, Medical, Telecommunications | |
| Contact Type | Male Pin | |
| Fastening Type | Latch Holder | |
| Number of Positions Loaded | All | |
| Termination | Solder | |
| Material Flammability Rating | UL94 V-0 | |
| Contact Material | Copper Alloy | |
| Insulation Color | Black | |
| Pitch - Mating | 0.050" (1.27mm) | |
| Contact Finish - Mating | Gold | |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | |
| Contact Finish - Post | Tin | |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | |
| Contact Shape | Circular | |
| Contact Length - Post | 0.100" (2.54mm) | |
| Insulation Height | 0.390" (9.91mm) | |
| Shrouding | Shrouded - 2 Wall | |
| Insulation Material | Thermoplastic | |
| Contact Length - Mating | 0.125" (3.18mm) | |
| Number of Rows | 1 | |
| Number of Positions | 4 | |
| Base Product Number | 104071 |
数据表
5-104071-7 数据表 (PDF)| 资源类型 | 链接 |
|---|---|
产品图纸 | 104071 Drawing |
规格书 | 5-104071-7 |
环保信息 | 5-104071-7 Statement of Compliance |
3D 图纸 | 5-104071-7.pdf |
| 属性 | 描述 |
|---|---|
湿气敏感性等级 (MSL) | 1 (永久) |
ECCN | EAR99 |
HTSUS | 8536.69.4040 |
REACH 状态 | Vendor Undefined |
RoHS 状态 | 符合 ROHS 规范 |
| 属性 | 描述 |
|---|---|
最小订单数量 | 1 |
标准包装 | 46 |
5-104071-7 - 来自制造商: TE, 它是一款 CONN HEADER VERT 4POS 1.27MM, 属于 连接器, 矩形连接器, 针座，公插针。 5-104071-7 库存状态: 现货; 立即订货! 今日发货。
